Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 86105D listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $48000 to $10320 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 86105D () Main Features and Specifications

Product Specs

  • Status -
  • Launch Date Mar-2009

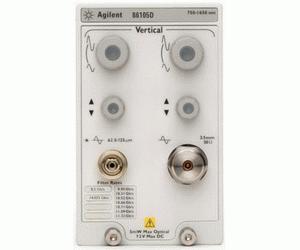

The Agilent 86105D Optical/Electrical Plug-in Module is the ideal solution for precision waveform analysis of optical transceivers operating at 8X Fibre Channel, 10 Gb SONET/SDH and Ethernet, and 16X Fibre Channel rates. The integrated optical receiver has an unfiltered bandwidth exceeding 20 GHz as well as switchable compliant reference receivers. It allows complete waveform analysis from early R&D through volume manufacturing over multiple transceiver technologies and is used as part of the 86100C Digital Communications Analyzer. Coupled with the updated 83496B Clock Recovery Module, this is the first complete solution for 16X Fibre Channel waveform analysis in the industry.

  • 20 GHz optical channel for 62.5/125 and 9/125 fibers
    • Switchable reference receivers for 8.5, 9.953, 10.3, 10.5, 10.6, 10.7, 11.1, 11.3 and 14.025 Gb/s (16xFC)
    • Wavelength range 750-1650 nm
    • Characteristic rms noise 5 µW (10 Gb/s receiver) 8 µW (16xFC receiver)
  • 35 GHz electrical channel with 3.5 mm male connector
    • 25 and 35 GHz bandwidths (user selectable)
    • Characteristic rms noise 250 µV (25 GHz BW), 450 µV (35 GHz BW)
  • Compatibility: 86100C Infiniium DCA-J Mainframe
