Tektronix 7A19 () Main Features and Specifications

Product Specs

  • Status Discontinued

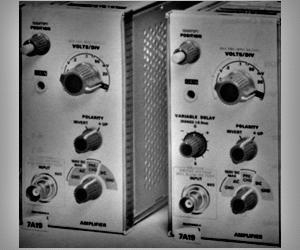

The Tektronix 7A19 is a plug-in wide-band single-channel amplifier for the 7000 Series oscilloscopes. Readout encoding circuitry is included to enable deflection factor readout, Identify functionality, and probe coding. The 7A19 should preferably be operated in one of the vertical compartments of the 7000 Series oscilloscopes.

  • Bandwidth: 500 MHz
  • Deflection factor: 10 mV/div to 1 V/div
  • Maximum input power: DC or AC coupled, 2 W average or 50 divisions peak deflection
  • Maximum input voltage (AC coupled): 100 V
  • Maximum input current: <0.2 mA
  • DC drift: ≤100 µV/C°
  • Option 4: Variable delay from -0.5 ns to +0.5 ns

Get Price Quotes

Tektronix 7A19 Opts: no option
  • €399
