Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 86105C listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $16500 to $8720 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 86105C () Main Features and Specifications

Product Specs

  • Status -

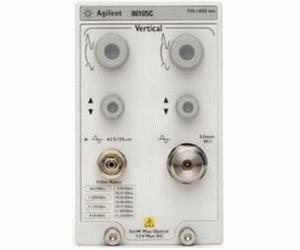

The 86105C Infiniium DCA-J plug-in module offers unprecedented wavelength and optical filter coverage for SONET/SDH and datacom/enterprise technologies up to 11.3 Gb/s. With this industry-first capability, optical component and equipment manufacturers can perform waveform characterization and test transmitter compliance on multiple networking technologies with a single plug-in module.

  • 9 GHz amplified optical channel for 9/125 to 62.5/125 fibers
    • Wavelength range: 750-1600 nm
    • Characteristic rms noise: 0.8 µW (1310/1550 nm, 2.667 Gb/s), 1.4 µW (1310/1550 nm, 11.3 Gb/s), 1.3 µW (850 nm, 2.667 Gb/s), 2.5 µW (1310/1550 nm, 11.3 Gb/s)
    • Maximum average input power: 0.5 mW
    • Reference receiver capability: Data rates depend on option
  • 20 GHz electrical channel with 3.5 mm male input
    • Characteristic rms noise: 0.25 mV (12.4 GHz BW), 0.5 mV (20 GHz BW)
    • Maximum input signal: ± 2 Vdc
  • Options
    • Option 100: Combination of four low data rate filters
    • Option 200: Multi 9G filters
    • Option 300: Combination of low data rate filters and multi 9G filters
    • Option 110: 155 Mb/s filter
    • Option 120: 622 Mb/s filter
    • Option 130: 1.063 Gb/s filter
    • Option 140: 1.250 Gb/s filter
    • Option 150: 2.125 Gb/s filter
    • Option 160: 2.488 Gb/s and 2.500 Gb/s filter
    • Option 170: 2.666 Gb/s filter
    • Option 180: 3.125 Gb/s filter
    • Option 190: 4.25 Gb/s filter
    • Option 193: 5.0 Gb/s
    • Option 195: 6.25 Gb/s
    • Option 197: 8.5 Gb/s
  • Compatibility: 86100A/B/C Infiniium DCA/DCA-J Mainframes
