Keysight Technologies (Agilent HP) 86116A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Supported until Jul-2013
  • Alternative 86116C DCA-J oscilloscope module

See also

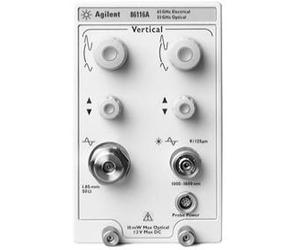

The Agilent 86116A plug-in module includes an integrated optical receiver designed to provide the optimum in wavelength range, sensitivity, and waveform fidelity.

  • 53 GHz optical channel for 9/125 fibers
    • Wavelength range: 1000-1600 nm
    • Characteristic rms noise: 60 µW (50 GHz BW / best sensitivity), 160 µW (53 GHz BW / best pulse fidelity)
    • Maximum displayed peak power: 20 mW
  • 63 GHz electrical channel with 1.85 mm male input
    • Characteristic rms noise: 0.6 mV (43 GHz BW / best sensitivity), 1.7 mV (63 GHz BW / best pulse fidelity)
    • Maximum input signal: ± 2 Vdc
  • Compatibility: 86100A/B/C Infiniium DCA/DCA-J Mainframes
