Showing Results for Keysight Technologies (Agilent HP) 86105B

15 results found for Agilent hp 86105b
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 86105B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $2580 to $1840 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 86105B () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative 86105D

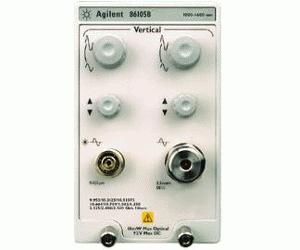

The Agilent 86105B lets you perform transmitter compliance tests of multiple technologies and line rates with a single module. It is now possible to characterize optical transmission performance of SONET, Ethernet, and Fibre Channel technologies, from 155 Mb/s through 10 Gb/s. In addition, new Infiniium DCA firmware now supports mask testing for emerging standards such as optical InfiniBand and electrical XAUI signaling.

  • 15 GHz optical channel for 9/125 fibers
    • Wavelength range: 1000-1600 nm
    • Characteristic rms noise: 5 µW (10 GHz BW), 10 µW (15 GHz BW)
    • Maximum average input power: 2 mW
  • 20 GHz electrical channel with 3.5 mm male input
    • Characteristic rms noise: 0.25 mV (12.4 GHz BW), 0.5 mV (20 GHz BW)
    • Maximum input signal: ±2 Vdc
  • Options
    • Option 111: 9.953, 10.3125, 10.51875, 10.664, 10.709, 11.096, 11.317 Gb/s
    • Option 112: 155, 622 Mb/s, 2.488, 2.50, 2.666, 9.953, 10.31, 10.52, 10.66, 10.71, 11.1, 11.32 Gb/s
    • Option 113: 1.063, 1.25, 2.125, 2.488, 2.50, 9.953, 10.31, 10.52, 10.66, 10.71, 11.1, 11.32 Gb/s
    • Discontinued options: 101, 102, 103
  • Compatibility: 86100A/B/C Infiniium DCA/DCA-J Mainframes
