Here you will find a large selection of new and used General Radio 874 Adapters listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $95 to $25 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

General Radio 874 Adapters () Main Features and Specifications

Product Specs

  • Status -

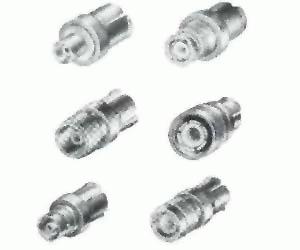

GR874 50 Ω adapters: These adapters provide easy conversion from the GR874 connector to popular military and industrial coaxial connectors. Many of the adapters are available with locking GR874 connectors to allow semi-permanent attachment of the adapter while ensuring stable electrical performance. The adapters extend the usefulness of the GR874 connectors without sacrificing electrical performance. Because any two GR874 adapters can mate, a few of them can perform a cross-connection task that would otherwise involve a costly collection of direct adapters. For example, interconnection of types BNC, C, Microdot, N, TNC, and UHF plugs and jacks would require 72 direct adapters, whereas only 12 GR874 adapters are needed to do the same job.

  • Adapters to BNC
    • 874-QBJA (BNC jack) / QBPA (BNC plug) non-locking, 874-QBJL (BNC jack) / QBPAL (BNC plug) locking
    • Frequency: dc to 8.5 GHz
    • Input voltage: Up to 500 Vpeak
  • Adapters to C
    • 874-QCJA (C jack) / QCP (C plug) non-locking, 874-QCJL (C jack) locking
    • Frequency: dc to 8.5 GHz
    • Input voltage: Up to 1000 Vpeak
  • Adapters to HN
    • 874-QHJA (HN jack) / QHPA (HN plug) non-locking
    • Frequency: dc to 8.5 GHz
    • Input voltage: Up to 1500 Vpeak
  • Adapters to Microdot
    • 874-QMDJ (Microdot jack) non-locking, 874-QMDJL (Microdot jack) locking, 874-QMDP (Microdot plug) non-locking
    • Frequency: dc to 4 GHz
    • Input voltage: Up to 300 Vpeak
  • Adapters to N
    • 874-QNJ (N jack) non-locking, 874-QNJL (N jack) locking, 874-QNP (N plug) non-locking, 874-QNPL (N plug) locking
    • Frequency: dc to 8.5 GHz
    • Input voltage: Up to 1000 Vpeak
  • Adapters to SMA
    • 874-QMMJ (SMA jack) non-locking, 874-QMMJL (SMA jack) locking, 874-QMMP (SMA plug) non-locking, 874-QMMPL (SMA plug) locking
    • Frequency: dc to 8.5 GHz
    • Input voltage: Up to 300 Vpeak
  • Adapters to TNC
    • 874-QTNJ (TNC jack) non-locking, 874-QTNJL (TNC jack) locking, 874-QTNP (TNC plug) non-locking
    • Frequency: dc to 8.5 GHz
    • Input voltage: Up to 500 Vpeak
  • Adapters to UHF
    • 874-QUJ (UHF jack) non-locking, 874-QUJL (UHF jack) locking, 874-QUP (UHF plug) non-locking
    • Input voltage: Up to 500 Vpeak
  • Adapter to 7-mm precision
    • 874-QAPZL (Amphenol APC-7) locking
    • Frequency: dc to 8.5 GHz
    • Input voltage: Up to 1000 Vpeak
  • Adapter to GR900 connector
    • 874-Q900L locking
    • Frequency: dc to 8.5 GHz
    • Input voltage: Up to 1500 Vpeak
  • Adapter to binding posts: 874-Q2 (jack), nonlocking
  • Adapters to banana plugs: 874-Q10 (unshielded plugs), 777-Q3 (shielded plugs)

The GR874 75 Ω adapters:

  • Adapters to BNC
    • 874-QBJ with BNC jack, 874-QBP with BNC plug
    • Frequency: dc to 2 GHz
    • Input voltage: 500 V maximum
  • Adapters to type F: Type F jacks are designed for use with 0.023 inch diameter (0.58 mm) wire
    • 874-QFJ with type F jack, 874-QFP with type F plug
    • Frequency: dc to 2 GHz
  • Adapters to type N
    • 874-QNL with type N jack, 874-QNP with type N plug
    • Frequency: dc to 2 GHz
  • Adapters to large WE (Western Electric)
    • 874-QWJL with large WE jack, 874-QWPL with large WE plug
    • Frequency: dc to 1 GHz
  • Adapters to small WE (Western Electric)
    • 874-QWJS with large WE jack, 874-QWPS with large WE plug
    • Frequency: dc to 1 GHz
  • Adapter to GR900
    • 874-Q900, GR874 (75 Ω) to GR900 (75 Ω)
    • Frequency: dc to 2 GHz
