Keysight Technologies (Agilent HP) 11852B () Main Features and Specifications

Product Specs

  • Status -

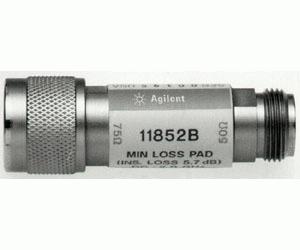

The Agilent 11852B is an instrument-grade, 50 Ω type-N female to 75 Ω type-N male adapter (minimum loss pad). This product is also available in a 50 Ω type-N male to 75 Ω type-N female configuration.

  • Frequency range: DC to 3 GHz
  • Maximum input power: 250 mW (+24 dBm)
  • Insertion Loss: 5.7 dB, typical
  • Return Loss: >27 dB
  • Electrical Length: 50.2 mm (1.98 in)
  • Overall Length: 60.1 mm (2.37 in)
  • Diameter: 22.0 mm (0.87 in)
  • Reference Plane to Reference Plane Length (nominal): 50.2 mm (1.98 in)
  • Standard connectors: 50 Ω type N (f), 75 Ω type N (m)
  • Option 004 connectors: 75 Ω type N (f), 50 Ω type N (m)
