Keysight Technologies (Agilent HP) 8765F () Main Features and Specifications

Product Specs

  • Status -

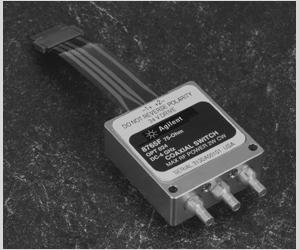

The Agilent 8765F brings a new standard of performance to 75-ohm coaxial components. Designed for ATE switching systems, the Agilent 8765F offers the performance being demanded by the cable television distribution equipment and communications equipment industries. It gives the ATE system designer for telecommunications and cable distribution equipment the tools to design high performance, reliable switching interfaces. The Agilent 8765F is designed to work in virtually any system by virtue of the variety of voltage options covering 4.5V to 32V dc available for activating the switch solenoids. While the standard configuration for the switch comes with a dc ribbon cable connector, solder terminals are also available as option 100. These options will be supported until August 2018. Options 005/305 (5 Vdc) and Options 015/315 (15 Vdc) are available as replacements.

8765F Option 010 and 310 will be discontinued March 1, 2012, last day to order is May 31, 2012.

  • Unterminated
  • Break-before-make
  • Insertion loss: < 0.18 dB to 1 GHz, < 0.24 dB to 2 GHz, < 0.4 dB to 4 GHz
  • Isolation: > 100 dB to 1 GHz, > 90 to 4 GHz
  • SWR: 1.15 to 1 GHz, 1.20 to 4 GHz
