Keysight Technologies (Agilent HP) 8764B () Main Features and Specifications

Product Specs

  • Status -

See also

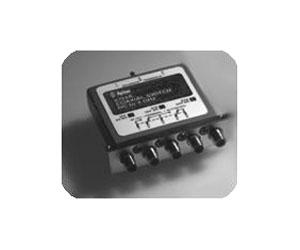

The Agilent 8764B is a five-port switch providing low SWR, low insertion loss, and more than 90 dB isolation. The 8764B offers excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, long life, and exceptional repeatability.

  • Frequency range: DC to 18 GHz
  • Unterminated multiport coaxial switch with five RF ports
  • Insertion loss: <0.20 dB to 2 GHz, <0.5 dB to 18 GHz
  • SWR (through line): <1.1 to 2 GHz, <1.2 to 12.4 GHz, <1.3 to 18 GHz
  • Average power: 2 W
  • Peak power: 100 W
  • Driving voltage: 5, 15, 24 Vdc
  • Isolation: >90 dB to 18 GHz
  • Long life >1 million cycles
  • Speed: 30 ms
  • High repeatability: <0.03 dB typical
  • Current interrupts and position indication capability
  • RF Connector: SMA (f)
