Keysight Technologies (Agilent HP) 8765A () Main Features and Specifications

Product Specs

  • Status Discontinued

See also

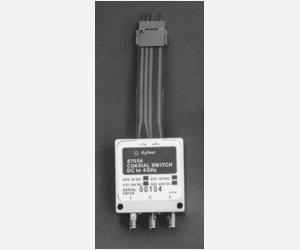

The Agilent 8765A offers excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, long life, and exceptional repeatability. The Agilent 8765 family of switches is designed for microwave instrumentation and ATE systems.

8765A Option 010 and 310 will be discontinued March 1, 2012, last day to order is May 31, 2012. These options will be supported until August 2018. Options 005/305 (5 Vdc) and Options 015/315 (15 Vdc) are available as replacements.

  • Unterminated single pole double throw switch
  • Break-before-make
  • Frequency range: dc to 4 GHz
  • Isolation: 110 dB -2.25 dB/GHz
  • Insertion loss: < 0.2 dB + 0.025 dB/GHz
  • SWR: <1.2 dc to 4 GHz
  • Voltage options covering drive voltages between 4.5-32 volts dc
  • Option 890 includes printout of test results
  • Connector: SMA (f)
