Keysight Technologies (Agilent HP) 8765D () Main Features and Specifications

Product Specs

  • Status -

See also

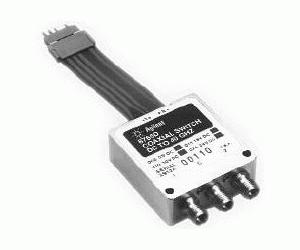

The Agilent 8765 family of switches is designed for microwave instrumentation and ATE systems and features excellent electrical and mechanical performance. The Agilent 8765D is equipped with SMA connectors and operates from dc to 26.5 GHz with 3.5 mm connectors and 40 GHz with 2.4 mm connectors. Option 292 can be ordered with Agilent 8765D. It is available with voltage option covering any drive voltage between 4.5 volts and 32 volts dc. Where performance data are required, option 890 includes a printout of test results. This switch is designed from the ground up for maximum dependability and performance. It is designed to operate within its specifications for more than 10,000,000 cycles.

8765D Option 010 and 310 will be discontinued March 1, 2012, last day to order is May 31, 2012. These options will be supported until August 2018. Options 005/305 (5 Vdc) and Options 015/315 (15 Vdc) are available as replacements.

  • Unterminated SPDT
  • Break-before-make
  • Insertion loss: < 0.2 dB + 0.023 dB/GHz to 26.5 GHz, 0.75 dB + 0.023 dB/GHz to 40 GHz
  • Isolation: 110 dB - 2.25 dB/GHz
  • SWR: <1.10 dc to 4 GHz, <1.30 4 to 26.5 GHz, <1.50 26.5 to 40 GHz
