Keysight Technologies (Agilent HP) E5385A () Main Features and Specifications

Product Specs

  • Status -

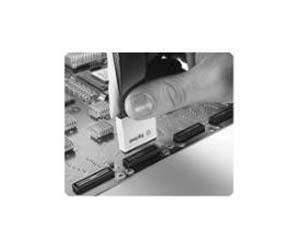

The Agilent E5385A Samtec probe provides a convenient and reliable connection to a target through a Samtec connector designed into the target. This connector-based probe offers low loading in a small, surface mount footprint. The probes can be used with a support shroud in environments where accidental unplugging of the probe is a concern. The E5385A can be used with any Agilent logic analyzer with a 40-pin cable connector.

  • 34 channels: 32 single-ended data, 2 single-ended clock
  • 1.5 pF equivalent load capacitance
  • 1.5 Gb/s maximum data rate
  • Measure signals with as little as 500 mVp-p signal amplitude
  • Provides a convenient, reliable connection to the target through a surface mount Samtec connector, which is easy to incorporate into your design
  • Support shrouds available for board thickness to 0.12 inches
  • 100-pin Samtec footprint
  • Compatible with logic analyzers with 40-pin cable connectors
  • Characteristics with any compatible state and timing analysis module
    • Minimum voltage swing: 500 mV p-p
    • Minimum input overdrive: 250 mV
    • Threshold range: -6 V to +6 V in 10 mV increments
    • Input dynamic range: ±10 V about threshold
    • Maximum input voltage: ±40 V peak CAT I (Mains isolated)
