Keysight Technologies (Agilent HP) 54701A () Main Features and Specifications

Product Specs

  • Status -

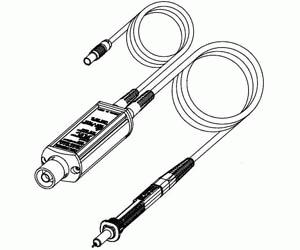

The Agilent Technologies 54701A 2.5-GHz Active Probe is a probe solution for high-frequency applications. This probe is designed to be powered from a connector at the front of the oscilloscope, or with the 1143A Probe Offset Control and Power Module. It can be used with any measuring instrument with a 50-Ω input.

  • Bandwidth of 2.5 GHz
  • Input resistance of 100 kΩ
  • Input capacitance of approximately 0.6 pF
  • Dynamic range of ±5 V peak ac and ±50 Vdc
  • Variable dc offset of ±50 V
  • Offset Accuracy: ±1% of offset 1 mV
  • Offset Gain (referenced to the probe tip): 11.5 V/mA
  • Excellent immunity to ESD and over-voltages
  • Rise time: <140 ps
  • Maximum Input Voltage: ±200 V[dc + peak ac(<20 MHz)]
  • Flatness: <3 ns from rising edge: ±6%, 3 ns from rising edge (for input edge 170 ps): ±1%
  • RMS Output Noise (dc to 2.5 GHz, input loaded by 50 Ω): <300 mV
  • Propagation Delay: 7.5 ns (approximately)
