Rohde & Schwarz ZVT20 (ZVT Vector Network Analyzers) Main Features and Specifications

Product Specs

  • Instrument Type Vector
  • Low end frequency limit 10 MHz
  • High End Frequency Limit 20 GHz
  • Output Power Range –30 dBm to +10 dBm at 10 MHz to 13 GHz, –30 dBm to +3 dBm at 16 GHz to 20 GHz
  • Input Noise Level <-70 dBm at 100 MHz to 700 MHz, <-98 dBm at 16 GHz to 20 GHz
  • Status -

See also

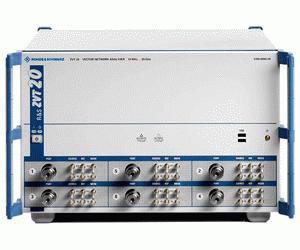

The R&S®ZVT8/R&S®ZVT20  from Rohde & Schwarz is the first true eight-port/six-port vector network analyzer with a frequency range up to 8 GHz/20 GHz.

  • R&S®ZVT8
    • Frequency range 300 kHz to 8 GHz
    • Two to eight test ports
    • Up to four internal sources
  • R&S®ZVT20
    • Frequency range 10 MHz to 20 GHz
    • Two to six test ports
    • Up to three internal sources

The R&S®ZVT vector network analyzers use the same firmware as the high-end analyzers of the R&S®ZVA series, and thus feature the same software functions and options. Like the R&S®ZVA, the R&S®ZVT has one generator for each pair of test ports and can thus be configured to include up to four internal sources. This makes the R&S®ZVT clearly superior to solutions requiring external generators. For example, the R&S®ZVT is capable of performing all sweep modes such as power sweep, segmented sweep, etc. Plus, no remote control sequences are required, thus saving execution time. The R&S®ZVT multigenerator and multireceiver hardware architecture, excellent RF performance, and versatile software functions make it an instrument that offers unique flexibility and outstanding performance for a wide range of applications.

General ZVT performance:

  • Wide dynamic range: >128 dB, typ >138 dB (at test ports, 8 port model)
  • High output power: >13 dBm (at all test ports)
  • High measurement speed: <2 μs per point
  • Very short sampling time: 430 ns per point
  • Measurement time: 8 ms (8‑port measurement covering 201 points)
  • Large number of test points: 60001 points per trace
  • Wide IF bandwidth: 5 MHz (30 MHz for pulse profile measurements)
  • Internal sources
    • 1 (2-port base unit)
    • 4 (8-port model)
  • Receivers: 1 measurement and 1 reference receiver per test port; up to 16 receivers possible

ZVT20 features:

  • High-end network analyzer of the R&S®ZVT  series
  • Base unit
    • Two test ports
    • One internal source
  • Additional ports 3 to 6 available as options
  • Direct channel access available as an option
  • Generator step attenuators for port 1 and port 3 available as options
  • Receiver step attenuators for port 2 and port 4 available as options
  • Internal combiner available as an option (provides a two-tone signal at port 1)
