Keysight Technologies (Agilent HP) N5235A (PNA-L Series) Main Features and Specifications

Product Specs

  • Instrument Type Vector, S-Parameter
  • Low end frequency limit 10 MHz
  • High End Frequency Limit 50 GHz
  • Output Power Range 0 dBm output power
  • Input Noise Level Noise floor of -110 dBm
  • Status -
  • Launch Date Jun-2012

See also

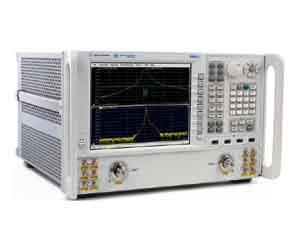

The Agilent N5235A PNA-L microwave vector network analyzer (VNA) offers design and manufacturing engineers the highest-performance mid-range VNA. PNA-L is the world’s best value for microwave manufacturing with accurate S-parameters at a budget-friendly cost along with future-proof capabilities. The PNA-L family is designed for passive components and simple active device measurements of amplifier and frequency converters.

Agilent’s PNA-L VNAs are available in five frequency models. Three frequency models, start at 300 kHz, with two or four ports available for the 13.5- and 20-GHz models, and two ports available for the 8.5-GHz product. The other two frequency models with two ports, start at 10 MHz, and include the 43.5- and 50-GHz products.

The N523xA PNA-L VNA replaces and is 100% compatible with the existing N5230C. The models feature both increased measurement range (5 dB more output power and 20 dB more dynamic range) and speed (the result of a new synthesizer with faster frequency switching). They also offer an improved user interface with a 24 percent bigger display. Because the models are 100 percent compatible with the N5230C PNA-L, no changes to the user''s current test setup are required.

  • 10 MHz to 50 GHz
  • 2 ports with single built-in sources
  • 110 dB system dynamic range, 32,001 points, 200 channels, 15 MHz IF bandwidth
  • High output power (0 dBm)
  • Low noise floor of -110 dBm (10 Hz IF bandwidth)
