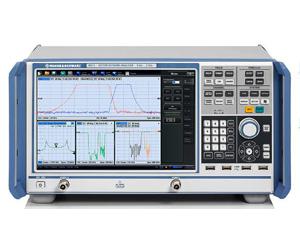

High reliability, outstanding ease of operation, maximum precision and a wide dynamic range – this is what customers expect from a network analyzer. Using state-of-the-art technology and a user-friendly operating concept, Rohde & Schwarz has implemented all these features in its R&S®ZNC vector network analyzer.

Operating in a range from 9 kHz to 3 GHz, the network analyzer is targeted at applications in the mobile radio and electronic goods industries. The R&S®ZNC is the right choice when it comes to developing, producing and servicing RF components such as filters and cables.

The R&S®ZNC has a bidirectional test set for measuring all four S-parameters of active and passive DUTs. Plus, it offers calibration methods suitable for a wide range of T & M environments in development and production. The analyzer features excellent temperature and long-term stability, which ensures reliable measurements over several days without having to recalibrate the unit.

This short-depth, compact two-port analyzer leaves plenty of space on the workbench for the measurement application. It features low operating noise thanks to low power consumption and a sophisticated cooling concept. The low power consumption also reduces operating costs and protects the environment.

• Frequency range from 9 kHz to 3 GHz
• Dynamic range of up to 130 dB
• Short sweep times of 11 ms for 401 points
• Segmented sweep for high speed and accuracy
• Fast switching between instrument setups
• Extensive analysis functions for convenient trace analysis
• Time-domain analysis for distance-to-fault (DTF) measurements and filter adjustment
• High temperature stability of typically 0.01 dB/°C
• Wide power sweep range from –50 dBm to +13 dBm
• IF bandwidths from 1 Hz to 300 kHz
• Manual and automatic calibration
• Low trace noise of 0.004 dB RMS at 10 kHz IF bandwidth
• Large, high-resolution 12.1" screen
• Touchscreen user interface
• Flat and clear menu structures for efficient operation

Specifications for the R&S®ZNC3:

• Frequency range: 9 kHz to 3 GHz
• Frequency resolution: 1 Hz
• Number of test ports: 2
• Test port connector: N female
• Impedance: 50 Ω
• Number of measurement points per trace: 2 to 5001
• Measurement bandwidth: 1 Hz to 300 kHz
• Dynamic range (without optional step attenuators)
  • 9 kHz to 100 kHz: >90 dB, typically 110 dB
  • 100 kHz to 1 MHz: >115 dB, typically 120 dB
  • 1 MHz to 3 GHz: >120 dB, typically 130 dB
• Measurement time for 201 measurement points, with 200 MHz span, 300 kHz measurement bandwith, with 900 MHz center frequency: <8 ms
• Measurement time per point with 300 kHz measurement bandwidth, CW mode: <4 μs
• Time for measurement and data transfer for 201 measurement points, with 800 MHz start frequency, 1 GHz stop frequency, 300 kHz measurement bandwidth: Typically, 8 ms
• Switching time between channels with no more than 2001 points: <5 ms
• Switching time between two preloaded instrument settings with no more than 2001 points: <5 ms
• Test port output power range (without R&S®ZNB-B22 extended power range option)
  • 9 kHz to 100 MHz: –10 dBm to +10 dBm, typically +12 dBm
  • 100 MHz to 3 GHz: –10 dBm to +10 dBm, typically +13 dBm
• Test port output power range (with R&S®ZNB-B22 extended power range option)
  • 9 kHz to 100 MHz: –50 dBm to +10 dBm, typically +12 dBm
  • 100 MHz to 3 GHz: –50 dBm to +10 dBm, typically +13 dBm
• Harmonics at 0 dBm
  • 20 kHz to 100 MHz: Typically <-30 dBc
  • 100 MHz to 3 GHz: <-25 dBc, typically <-30 dBc
• Test port input match without system error correction
  • 9 kHz to 50 kHz: >10 dB
  • 50 kHz to 3 GHz: >20 dB
• Test port maximum nominal input level: +13 dBm
• Test port damage level: +27 dBm
• Test port damage DC voltage: 30 V
• Test port input noise level at 1 kHz measurement bandwidth, normalized to 1 Hz
  • 9 kHz to 100 kHz: <–105 dBm (1 Hz)
  • 100 kHz to3 GHz: <–120 dBm (1 Hz)
