Here you will find a large selection of new and used Rohde & Schwarz SGS100A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Rohde & Schwarz SGS100A () Main Features and Specifications

Product Specs

  • Frequency Range Min. 1 MHz
  • Frequency Range Max. 12.8 GHz
  • Freq. Resolution 1 mHz
  • Output Power –120 dBm to +15 dBm (with option)
  • Modulation Vector,I/Q
  • Status -
  • Launch Date Jun-2011

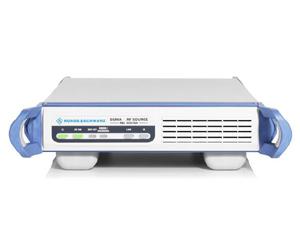

The R&S®SGS100A is an RF source designed to meet the requirements of automated test systems. It is available as a CW source or as a vector signal generator with an integrated I/Q modulator. With its frequency range of up to 6 GHz, the vector signal generation version covers the essential digital signals. The CW version, with a range of up to 12.75 GHz, can be used as a flexible local oscillator as well as for interference testing against mobile radio standards.

  • Smallest fully integrated vector signal generator on the market, space-saving design for system integration
  • Enables high throughput due to very short frequency and level setting times of typically 280 μs via PCIe interface
  • Excellent RF performance in a compact format
  • Maximum output level of typically +22 dBm for compensating losses in the setup
  • Closed ALC loop for CW and I/Q modes for highest level repeatability
  • High output frequency up to 12.75 GHz for broad applicability
  • Wear-free electronic attenuator for high reliability
  • Very cost-efficient with low initial costs and low cost of ownership

SGS100A specifications:

  • Frequency range
    • With the R&S®SGS-B106 option: 1 MHz to 6 GHz
    • With the R&S®SGS-B106 and R&S®SGS-B112 options: 1 MHz to 12.75 GHz
    • With the R&S®SGS-B106V option: 80 MHz to 6 GHz (I/Q mode), 1 MHz to 6 GHz (CW mode)
    • Setting time to within < 2 × 10–7 for f > 500 MHz or < 100 Hz for f ≤ 500 MHz with PCIe remote control: < 500 μs
    • Input frequency for external reference: 10 MHz, 100 MHz, 1000 MHz
  • Specified level range
    • -10 dBm to +15 dBm (peak envelope power)
    • With the R&S®SGS-B26 option: –120 dBm to +15 dBm (peak envelope power)
    • Setting time to < 0.1 dB deviation from final value, Setting Characteristic AUTO, with PCIe remote control: < 500 μs
  • Harmonics with level ≤ 8 dBm, CW, I/Q wideband OFF: <-30 dBc
  • Nonharmonics with level > -10 dBm (> 0 dBm for instruments without the  R&S®SGS-B26 electronic step attenuator), offset > 10 kHz from carrier, f ≤ 1.5 GHz: < -76 dBc
  • Subharmonics with level > -10 dBm (> 0 dBm for instruments without the  R&S®SGS-B26 electronic step attenuator), f ≤ 3 GHz: < -76 dBc
  • Wideband noise with 1 MHz ≤ f ≤ 6 GHz and 10 MHz carrier offset, 6 GHz < f ≤ 12.75 GHz and 30 MHz carrier offset, AUTO mode, level > 5 dBm, 1 Hz measurement bandwidth, CW: < –145 dBc
  • SSB phase noise with 20 kHz carrier offset, 1 Hz measurement bandwidth
    • f = 1 GHz: < –126 dBc, –130 dBc (typical)
    • f = 10 GHz: < –106 dBc, –110 dBc (typical)
  • I/Q modulator bandwidth (RF)
    • 100 MHz < f ≤ 2.5 GHz, wideband: 40% of carrier frequency
    • 2.5 GHz < f ≤ 6 GHz, I/Q wideband: 1 GHz
  • Baseband bypass mode
    • Frequency range: 1 MHz ≤ f ≤ 80 MHz
    • Specified level range: -5 dBm to +15 dBm, with the R&S®SGS-B26 option: -120 dBm to +15 dBm
  • Remote control
    • Using Rohde & Schwarz instrument driver: PCIe (single lane)
    • Using SCPI 1999.5 or compatible command sets: Ethernet (TCP/IP) 10/100/1000BaseT
    • Using SCPI 1999.5 or compatible command sets: USB 2.0
