Showing Results for Stanford Research Systems DS345

11 results found for Stanford research systems ds345
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Stanford Research Systems DS345 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1650 to $595 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Stanford Research Systems DS345 (DDS Function/Arbitray Waveform Generators) Main Features and Specifications

Product Specs

  • Frequency Range Min. 40 MHz
  • Waveform Outputs 12 bits
  • Modulation 10 mV to 10 V
  • Status -

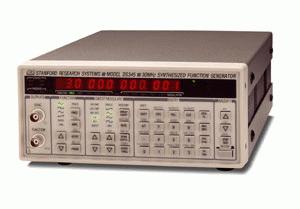

The DS345 Function /Arbitrary Waveform Generator is a full-featured, 30 MHz instrument that uses an innovative Direct Digital Synthesis (DDS) architecture. It generates many standard waveforms with excellent frequency resolution (1 µHz), and has versatile modulation capabilities including AM, FM, Burst, PM and frequency sweeps. It also generates arbitrary waveforms with a fast 40 Msample/s update rate.

  • Number of Channels 1 ch
  • Waveforms (Sine, Square, etc.) Ramp,Sine,Square,Triangle
  • Minimum Frequency 1 mHz
  • Maximum Frequency, Sine wave 30.2 MHz
  • Maximum Frequency, Square Wave 30.2 MHz
  • Maximum Frequency, Triangle Wave 100 kHz
  • Maximum Frequency, Ramp 100 kHz
  • Maximum Noise Generator Bandwidth 10 MHz
  • Output Impedance 50 Ohm
  • Modulation AM,FM,Phase
