General Radio 900-TUA () Main Features and Specifications

Product Specs

  • Status -

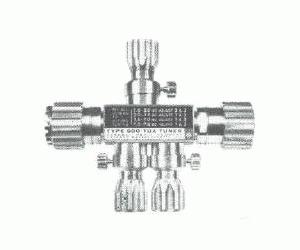

The 900-TUA precision tuner is used to match out small residual reflections in low SWR measuring instruments and devices. The tuner has three smoothly adjustable tuning screws that are used in pairs to tune out reflections of any phase throughout the frequency range of the tuner. EAch screw has a neutral setting, independent of frequency, at which it is effectively out of the circuit. Screws can be locked at any setting to enhance the excellent SWR resettability and to protect against accidental disturbance. They can be partially clamped for the desired friction.

  • Frequency: 1 to 8.5 GHz
  • SWR matching range: 1.00 to 1.00 + 0.012 fGHz, worst-case minimum
  • Impedance: 50 Ω nominal
  • Repeatability: 0.05% (limited by connector)
  • Insertion loss: <0.1 dB to 4 GHz, <0.3 dB to 8.5 GHz
  • Electrical length: 12.0 cm
