Showing Results for Keysight Technologies (Agilent HP) 772D

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 772D listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $10083 to $2200 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 772D () Main Features and Specifications

Product Specs

  • Status -

See also

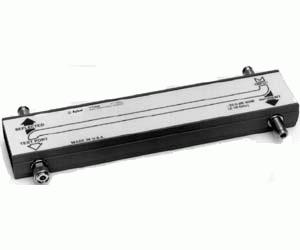

The Agilent 772D is a high-performance, dual-directional coupler designed for broadband swept measurements in the 2 to 18 GHz range. This coupler can be combined with Agilent power sensors and power meters for reflectometer applications. Forward and reverse power measurements on transmitters, components, or other broadband systems are made simpler using the Agilent 772D. The broadband design allows the use of a single test setup and calibration for tests spanning the entire 2 to 18 GHz range.

  • Nominal coupling: 20 dB
  • Maximum coupling variation: ±1.0 dB
  • Tracking between auxiliary arms: <±0.7 dB
  • Directivity: 30 dB to 12.4 GHz, 27 dB to 18 GHz
  • Connectors: Test port APC-7; input, incident, and reflected ports Type-N (F)
