Showing Results for Keysight Technologies (Agilent HP) 84904K

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 84904K listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $4963 to $649 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 84904K () Main Features and Specifications

Product Specs

  • Status -

See also

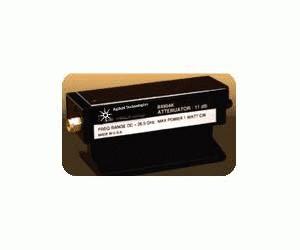

The Agilent 84904K programmable step attenuator offers coaxial measurements to 26.5 GHz in a compact, rugged design. It offers repeatability of better than 0.03 dB, excellent life (greater than 5 million switching cycles per section) and attenuator range of 0 to 11 dB in 1-dB steps. This latest design evolution sets new standards for size and performance. High attenuation accuracy and low SWR are achieved through the use of miniature thin-film attenuation cards composed of high-stability tantalum nitride film of saphire substrate. Insertion loss is outstanding, with less than 2 dB of loss at 26.5 GHz. The compact size of the unit, 35% smaller than the Agilent 8495/7 (26.5 GHz) family, allows for easy integration into instruments and ATE systems.

  • Frequency range: dc to 26.5 GHz
  • Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz
  • Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 26.5 GHz
  • Repeatability life: 0.03 dB maximum
  • 5 million cycles per section
  • Power Handling: Maximum RF input power: 1 W (average), 100 W (peak)
  • Connector type: 3.5 mm female, optional 3.5 mm male/female
  • Programming connector: 10-pin sockets
