Showing Results for Keysight Technologies (Agilent HP) 8496H

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8496H listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $3210 to $399 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 8496H () Main Features and Specifications

Product Specs

  • Status -

See also

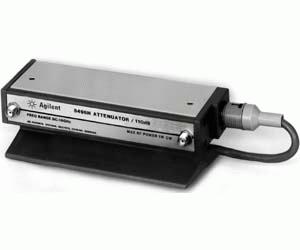

The Agilent 8496H dc to 18 GHz programmable step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 110 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator/switch combinations are possible. The Agilent 11716A/B/C interconnect kits provide quick connection of Agilent 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

  • Frequency range: dc to 18 GHz
  • Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
  • Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
  • Repeatability life: 0.03 dB maximum
  • 5 million cycles per section
  • Maximum RF input power: 1 W (average), 100 W (peak)
  • Connector type: choice of type-N female, SMA female, APC-7
  • Programming connector: 12-pin Viking, optional 14-pin DIP

Get Price Quotes

Keysight Technologies 8496H
  • $2,016
    • In Stock
