Keysight Technologies (Agilent HP) 11691D () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Supported until May-2012
  • Alternative 773D

See also

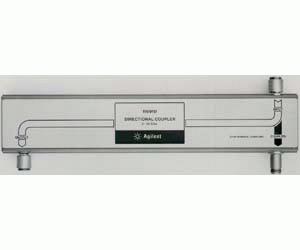

The Agilent 11691D is a single coupler for 2 to 18 GHz with a 20 dB coupling factor. With 30 dB directivity to 8 GHz and 26 dB to 18 GHz, it is useful for broadband reflectometry.

  • Frequency range: 2 to 18 GHz - Wide frequency coverage simplifies testing
  • High directivity
  • Ideal for leveling broadband sources
  • Nominal Coupling: 20 dB
  • Maximum Coupling Variation: ±1 dB incident to test port
  • Minimum Directivity: 2 to 8 GHz: 30 dB, 18 to 18 GHz: 26 dB, 24 dB with Type-N connector on the input port
  • SWR Primary Line Maximum (50 Ohm Nominal): 2 to 12.4 GHz: 1.3, 12.4 to 18 GHz: 1.4
  • Connectors:
    • Primary line input/ouput: APC-7/APC-7
    • Auxiliary arms: N(f)
