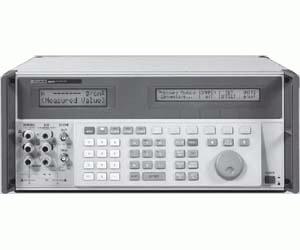

The Fluke 5520A Multi-Product Calibrator sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current to simulate dc and ac power with phase control, resistance, capacitance, thermocouples and RTDs. The 5520A can also measure thermocouple temperature, humidity (with probe) and pressure using one of 28 Fluke 700 Series pressure modules. Three options add the capability to calibrate oscilloscopes up to 1.1 GHz. And the 5520A-PQ Power Quality Option enables the 5520A to calibrate power quality instrumentation to the standards of the IEC and other regulatory agencies.

The 5520A builds on the capabilities of the 5500A, extending its workload coverage even further. Its improved accuracy, expanded ranges, and capability to calibrate 5 1/2 and 6 1/2 digit multimeters can cover virtually all your high-performance workload.

• Wide workload coverage:
  • Handheld and bench meters (analog and digital) up to 6 1/2 digits
  • Thermocouple and RTD thermometers
  • Process calibrators
  • Data loggers
  • Strip and chart recorders
  • Watt meters
  • Power harmonics analyzers
  • Current clamps and clamp meters
  • Analog or digital handheld and bench oscilloscopes (with options)
  • Panel meters
  • Graphical multimeters
  • Power meters, disturbance analyzers, power quality monitors, recorders and other power quality related equipment (with option)
• Easy to use - logically arranged and clearly labeled front panel, bright LCD
• Versatile and flexible - easily adapts to your workload
• Portable and rugged
• Compliance with quality standards made easy
• DC voltage range: 0 to ±1020 V
• DC current range: 0 to ±20.5 A
• Resistance range: 0 to 1100 MΩ
• AC voltage range: 1 mV to 1020 V
• AC current range: 29 mA to 20.5 A
• Capacitance range: 0.19 nF to 110 mF
• Thermocouple source and measure range: -250°C to +2316°C
• RTD source range: -200°C to +630°C
• DC power range: 10.9 mW to 20.5 KW
• AC power range: 10.9 mW to 20.5 KW
• Phase range: 0 to ±179.99°
• Frequency range: 0.01 Hz to 2.0 MHz
