Keysight Technologies (Agilent HP) 85032B () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative 85032F Standard Mechanical Calibration Kit, DC to 9 GHz, Type-N, 50 ohm

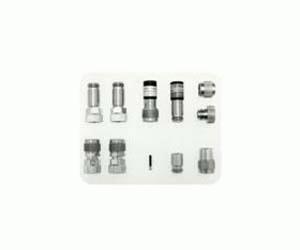

The Agilent 85032B calibration kit contains precision 50 ohm type-N standards used to calibrate Agilent network analyzers for measurement of devices with 50 ohm type-N connectors. Precision phase-matched 7 mm to 50 ohm type-N adapters can be included for accurate measurements of non-insertable devices. Standards include fixed terminations, open circuits, and short circuits in both sexes. This kit is specified from dc to 6 GHz.

  • Return loss - loads
    • ≥49 dB (DC to ≤2 GHz)
    • ≥46 dB (>2 to ≤3 GHz)
    • ≥40 dB (> 3 to ≤6 GHz)
  • Return loss - adapters (type-N to 7-mm): ≥30 dB (DC to ≤6 GHz)
  • Female open: ±0.501° ±0.484°/GHz deviation from nominal (DC to ≤6 GHz)
  • Female short: ±0.490° ±0.385°/GHz deviation from nominal (DC to ≤6 GHz)
  • Male open: ±0.501° ±0.234°/GHz deviation from nominal (DC to ≤6 GHz)
  • Male short: ±0.441° ±0.444°/GHz deviation from nominal (DC to ≤6 GHz)
