Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 85056K listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 85056K () Main Features and Specifications

Product Specs

  • Status -

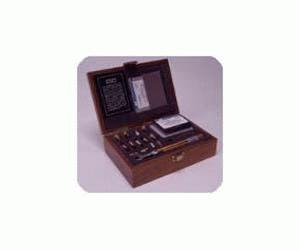

The Agilent 85056K mechanical calibration kit contains precision standard devices to characterize the systematic errors of Agilent network analyzers. This kit supports both 2.4 and 2.92 mm connectors. It also contains adapters to change the sex of the test port, connector gauges for verifying and maintaining the connector interface, and a torque wrench for proper connection. Included are standards definitions on disk.

  • DC to 50 GHz frequency range
  • Return loss
    • Broadband loads, dc to ≤4 GHz: ≥42 dB
    • Sliding loads, 4 to ≤20 GHz: ≥42 dB
    • Adapters (2.4 mm to 2.4 mm), DC to ≤4 GHz: ≥32 dB
    • Adapters (2.4 mm to 2.92 mm), DC to ≤40 GHz: ≥24 dB
  • Offset opens, DC to ≤2 GHz: ±0.5° deviation from nominal
  • Offset shorts, >2 to ≤20 GHz: ±1.25° deviation from nominal
  • Calibration standards to perform full two-port calibration
  • Torque wrenches for properly connecting standards
  • Adapters to change the sex of the test port
  • Standard definitions on disk for loading into network analyzer
  • Commercial calibration certificate
