Showing Results for Keysight Technologies (Agilent HP) 85033C

8 results found for Agilent hp 85033c
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 85033C listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $2514 to $1585 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 85033C () Main Features and Specifications

Product Specs

  • Type 3.5 mm
  • Status Discontinued
  • Alternative 85033D Calibration Kit, 3.5 mm

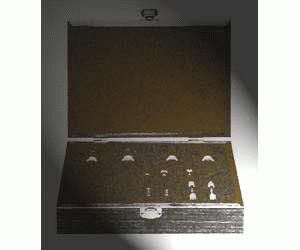

The HP 85033C 3.5 mm calibration kit contains precise standards used to calibrate network analyzer systems such as the 8752A or 8753A/B/C. The standard 85033C kit consists of opens, shorts, 50 ohm terminations, and 3.5 mm to 7 mm adapters for accurate measurements of non-insertable devices.

Return loss for 3.5 mm (m) 50Ω termination and 3.5 mm (f) 50Ω termination:

  • DC to 3 GHz: ≥40 dB
  • 3 to 6 GHz: ≥35 dB
  • 6 to 26.5 GHz: ≥24 dB

Mechanical specifications:

  • 3.5 mm connectors in kit (male or female): Center conductor recession = 0.0 to 0.003 inch
  • 7 mm end of type-N to 7 mm adapters: Center conductor recession with collet removed = 0.0 to 0.003 inch
