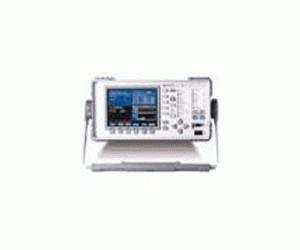

The HP OmniBER 717C (37717C) communications performance analyzer offers a single-box, field-portable multi-rate tester for installation, maintenance, and commissioning of hybrid PDH/SDH/SONET and ATM networks. It is a modular, portable analyzer that supports optical and electrical interfaces for TCarrier, PDH, SONET, SDH, ATM, jitter, and LAN applications from 704 kb/s to 622 Mb/s.

• Easy-to-read display
• Dedicated slots for optical interface, printer/remote-control module
• Additional eight slots for other interface and measurement modules
• Full width printing of screen (screen dump)
• View events graphically with timestamps
• Optical power measurements (option)
• Measurement of clock frequency and amount of frequency offset; test for network clock recovery capability
• Trouble Scan mode for alarm and error scans
• PDH/DSn
  • Alarm Scan mode to show the state of all alarms when scanning within a PDH/DSn network hierarchy
  • Check 64 kb/s or Nx64 kb/s digital paths (to ITU-T G.704: 1 to 31 contiguous and non-contiguous timeslots)
  • Access to and modification of spare bits
  • Generate alarms to check PDH/DSn network elements and tributary insert ports
• SDH
  • View the section and path overhead bytes of a received SDH signal
  • Overhead sequences and overhead BER measurement
  • RSOH or MSOH DCC drop and insert
  • PDH drop and insert - Drop/insert of 34/140/2 Mb/s to or from an STM-1/STM-4 signal
  • Pointer adjustments and analysis, and pointer location graph
  • Thru mode for in-service monitoring where no protected monitor points are available
  • SDH alarm scan (in-service) and BIP scan
  • Positive and negative pointer adjustments followed by analysis
  • Mixed payloads - Generate mixed TU-3 and TU-12 signal structures to test network elements, configured to carry mixed 2 Mb/s and 34 Mb/s traffic
  • Automatic verification of VC-n paths, using the out-of-service tributary scan for faster installation testing
• SONET
  • Overhead access and BER measurement
  • Drop and insert of TOH and TOH DCC channels
  • Pointer adjustments and analysis, and pointer location graph
  • SONET alarm scan (in-service) and BIP scan
  • DSn/PDH drop and insert
  • Thru mode for in-service monitoring where no protected monitor points are available
  • Automatic verification of VTn paths using the out-of-service tributary scan for faster installation testing
  • Mixed payloads - Generate mixed STS-1 signal structures within STS-3/OC-3 signal structures to test network elements
• ATM
  • Change cell stream bandwidth to quickly obtain quality-of-service data for the ATM network
  • AAL monitoring
  • Graphical display of maximum, mean, and minimum cell rate on a chosen VC for short or extended periods
  • Ping tests for Ethernet LAN interfaces
  • Channel view
  • Graphical display for 1-point and 2-point cell delay variation and nonconforming cell count
• Jitter
  • Automatic jitter tolerance test for verifying network equipment performance margins
  • Test jitter accumulation in regenerative repeaters
  • Jitter sweep and spot frequency
  • PDH and SDH output jitter measurements
