Dranetz BMI PowerGuide 4400 (PowerGuide) Main Features and Specifications

Product Specs

  • Input Channels 8 (4 voltage, 4 current)
  • Instrument Type Handheld
  • Interfaces RS-232,Screen
  • Operation Modes Monitor, Data logger, Scope, Recorder, Meter
  • Measurements voltage, current, power quality, distortion power, harmonics, interharmonics
  • Status -

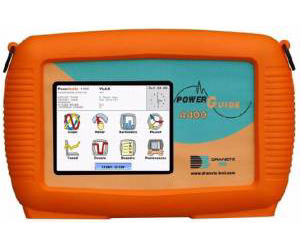

Equipped with 8 independent channels, the 3-phase PowerGuide 4400 is the only advanced power monitoring instrument to incorporate a color touch screen into its lightweight design. Automated setups provide instant detection of circuits and configurations, ensuring that the instrument is ready to successfully collect data. Users can select the length and mode of data collection, including troubleshooting, data logging, power quality surveys, energy, and load balancing.

  • Eight channels, 4 voltage & 4 current
  • Intuitive color touch screen
  • Light weight – Less than 4 pounds, 2 kg – with rugged rubber boot
  • AC/DC applications
  • Automated setups for out-of-the-box instrument readiness
  • Unique Report Card annunciator that instantly characterizes events
  • Samples at 256 samples/cycle
  • Independent voltage & current triggering, cross triggering
  • Capture of low-medium frequency transients
  • THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd
  • Captures IEEE 1459 parameters for non-sinusoidal and advanced power systems
  • Remote communications—RS-232, Ethernet, or USB
  • Battery or AC mode
  • Built in UPS battery with external charger
  • Expanded memory up to 128 MB (must have one memory option)
  • Available languages – English, Spanish, French, German, Italian, Swedish, Chinese, Finnish
  • DRAN-VIEW enabled (Windows NT, 98, ME, 2000, XP)
  • Measures flicker according to IEC 61000-4-15
  • Measures wide range of parameters, including crest factor, K factor, transformer derating factor, and telephone interference factor
  • Complies with IEEE 1159, IEC 61000-4-30 Class A and EN50160
