Keysight Technologies (Agilent HP) 3320B () Main Features and Specifications

Product Specs

  • Status Discontinued

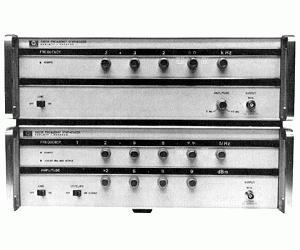

The 3320A/B frequency synthesizer offers a broad frequency range of 0.01 Hz to 13 MHz, low spurious content, and low signal-to-phase noise. It is capable of one part in 106 frequency resolution across the entire frequency range.

The 3320B is a precision programmable bench signal source—more than a synthesizer—because it provides precise level control, excellent frequency response, high power output, low harmonic distortion, and the flexibility of two choices of digital remote control. It features a four-digit leveling loop with a 0.01 dB level resolution of a calibrated output from +26.99 dBm to -69.99 dBm. Frequency response of ±0.05 dB over the range of 10 Hz to 13 MHz, and level accuracy of ±0.05 dBm absolute at 10 kHz complement the level capability of the 3320B.

  • Frequency range: 0.01 Hz to 13 MHz
  • Frequency resolution
    • Vernier out: 0.01 Hz to 10 kHz
    • Vernier in: 0.01 mHz to 10 Hz (local), 0.001 Hz to 1 kHz (remote)
  • Signal-to-phase noise: >10 dB down in 30 kHz band
  • Harmonic distortion: -60 dB to -40 dB
  • Spurious: >60 dB down
  • Amplitude range: +26.99 dBm to ‑69.99 dBm
  • Amplitude resolution: 0.01 dB
  • Output impedance: 50 Ω, 75 Ω with Option 001
  • Options
    • Option 001: Attenuation and output referenced to 75 Ω, +24 dBm to ‑69.99 dBm into 75 Ω
    • Option 002: 5 MHz crystal
    • Option 004: Full digital remote control of frequency and amplitude
    • Option 005: Bit-parallel word-serial digital remote control of all functions
    • Option 006: Addition of two lower programmable frequency ranges, 100 Hz and 10 Hz
