Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 3325B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $2497 to $649 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

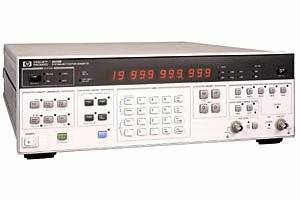

Keysight Technologies (Agilent HP) 3325B () Main Features and Specifications

Product Specs

  • Frequency Range Max. 21 MHz
  • Waveform Outputs Sine,Square,Triangle,Ramp,DC Offset
  • Modulation Sweep
  • Status Discontinued
  • Supported until Feb-2006
  • Alternative 33250A

The Agilent 3325B is a generator/waveform synthesizer with frequency accuracy, resolution, and stability that are ideal for applications such as crystal filter test, multiplexed communication system testing, clock/timing simulation and audio frequency system testing.

Exceptionally linear triangles and ramp signals are produced with synthesized accuracy and stability for applications such as VCO testing or process control. The dc-to-21 MHz frequency range (sine) makes the 3325B ideal for high-performance video system testing.

Pure sine waves or high quality squarewaves can be combined with up to ±5V of DC offset to interface with biased circuits or for stimulus in digital environments. In modulation applications, let the Agilent 3325B provide the carrier for a modulation source, or use the internal modulation source to get modulated signals from the 3325B alone.

  • Functions: Sine, square, triangle, negative and positive ramps, arbs, dc offset
  • Fully synthesized microhertz resolution
  • Internal programmable modulation source
  • LOG, LIN, discrete sweep
  • Excellent signal purity
  • DC to 60 MHz sync output
  • Operating Temperature: 0 to 55 degrees C
  • Relative Humidity: 95%, 0 to 40°C
  • Altitude : 15,000 ft and below
  • Power: 100/120/220/240 V, + 5%, -10%, 48 to 66 Hz, 90 VA, 120 VA with all options
  • Weight: 9 kg (20 lbs) net, 14.5 kg (32 lbs) shipping
  • Dimensions HxWxD: 133.4 mm x 425.5 mm x 498.5 mm, (5 1/4" x 16 3/4" x 19 5/8")
