Keysight Technologies (Agilent HP) 5359A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative No replacement.

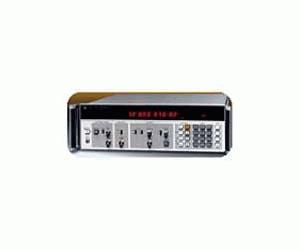

The Agilent 5359A time synthesizer produces two extremely precise low-jitter time delays. These delays, Td and Tw, are individually selectable from the keyboard. Step values of 50 ps or greater set these delays at up to 160 ms.

The 5359A serves as an important tool for the calibration of radar, Loran, DME, and Tacan systems, for precision generation of delayed sweeps in oscilloscopes, and for extremely accurate time positioning control of external gates on frequency counters. It can also be used for accurate delay line simulation in component and circuit test applications.

  • Automatic calibration: The calibrate control allows simple calibration immediately before the generation of a precise delay. Only 3 seconds are needed to calibrate 5 internal parameters for temperature compensation and aging effects
  • Easy-to-use: Keyboard simplifies entry of pulse parameters. Widths, delays, frequency, period, and step size may all be selected at the touch of a button. Continuously depressing "step up" or "step down" generates a convenient "sweep" of different delays or widths
  • Flexible output: Positive or negative polarity is selectable, and true or complement modes allow the logic sense to be changed
  • Displayable pulse amplitude and offset eliminate need for additional equipment
  • Selectable internal or external repetition rate, events mode, and triggered frequency for varied application requirements
  • Extremely low jitter (less than 100 ps) between external trigger and output pulse ensures precise delay generation
  • Ranges
    • Delay Td: 0 ns to 160 ms
    • Width Tw: 5 ns to 160 ms (width and delay ≤160 ms)
    • Period: 100 ns (or width +85 ns) min; 160 ms max
    • Frequency: Same as corresponding "period"
  • Measurement Characteristics
    • Repetition Rate: 10 MHz max
    • Accuracy: ± 1 ns ± time base error (± 100 ps ± time base error after external calibration)
    • Insertion Delay: Fixed at <150 ns; selectable as <50 ns for delays >100 ns
    • Jitter: Typical 100 ps rms; maximum 200 ps rms (delays to 10 ms)
