Showing Results for Rohde & Schwarz FSP3

18 results found for Rohde and schwarz fsp3
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Rohde & Schwarz FSP3 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $13200 to $3898 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Rohde & Schwarz FSP3 (FSP Series) Main Features and Specifications

Product Specs

  • Low end frequency limit 20Hz
  • High End Frequency Limit 3 GHz
  • Resolution Bandwidth Min. 10Hz
  • Resolution Bandwidth Max. 10 MHz
  • Amplitude Range DANL to +30 dBm
  • Status -

FSP is the ideal partner for both development and production, featuring the smallest level measurement uncertainty in its class, as well as excellent RF characteristics. The FSP is outstanding for its innovative measurement functions and incorporates proven technology with an all new hardware design to enable revolutionary performance, reliability and ease of service.

  • Frequency range 20Hz to 3GHz
  • Resolution bandwidth 1 Hz to 10 MHz
  • Displayed average noise level -155 dBm (1 Hz)
  • Phase-noise typ. -113 dBc/Hz @ 10 kHz offset, CF 500 MHz
  • Phase-noise typ - 145 dBc/Hz @ 10 MHz offset, CF 500 MHz
  • Additional filters:
    • Channel filters from 100 Hz to 5 MHz and RRC filters
    • FFT filters from 1Hz to 30 kHz
    • EMI bandwidths and quasi-peak detector
  • Total measurement uncertainty 0.5 dB
  • Measurement routines for TOI, ACP(R), OBW, CCDF, APD, etc. as standard
  • Fast ACP in time domain
  • Up to 80 measurements per second (including trace transfer via GPIB)
  • Electronic attenuator
  • Application firmware available for GSM/EDGE, Bluetooth, WCDMA/HSDPA/TD-SCDMA, CDMA2000/1xEV-DV/1xEV-DO, WLAN

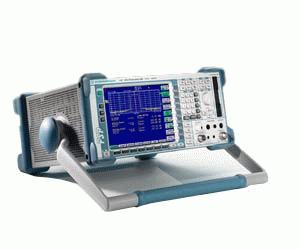

Rohde & Schwarz FSP3
  • $6,600
    • In Stock
