Rohde & Schwarz FSH8 (FSH Series) Main Features and Specifications

Product Specs

  • Low end frequency limit 9 kHz
  • High End Frequency Limit 8 GHz
  • Resolution Bandwidth Min. 100Hz
  • Resolution Bandwidth Max. 3 MHz
  • Amplitude Range Displayed noise floor to +30 dBm
  • Status -
  • Launch Date Nov-2008

See also

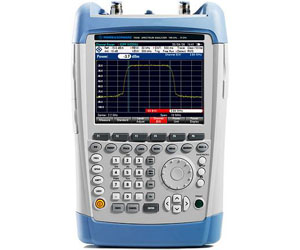

The R&S®FSH spectrum analyzer is rugged, handy, and designed for use in the field. Its low weight, its simple, well-conceived operation and the large number of measurement functions make it an indispensable tool for anyone who needs an efficient measuring instrument for outdoor work.

  • Frequency range from 9 kHz to 8 GHz (with versions .08 and .18); 100 kHz to 8 GHz (with version .28)
  • High sensitivity (<–141 dBm (1 Hz), with preamplifier <–161 dBm (1 Hz))
  • Low measurement uncertainty (<1 dB)
  • Measurement functions for all important measurement tasks related to the startup and maintenance of transmitter stations
  • Internal tracking generator (with versions .18, and .28) and internal VSWR bridge (with version .28)
  • Two-port network analyzer (version .28)
  • Easy-to-replace Li-ion battery for up to 4.5 h of operation
  • Rugged, splash-proof housing for rough work in the field
  • Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys
  • Saving of measurement results on SD card
  • LAN and USB interface for remote control and transfer of measurement data
  • R&S®FSH4View software for simple documentation of measurement results
