Here you will find a large selection of new and used Rohde & Schwarz FSVR40 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

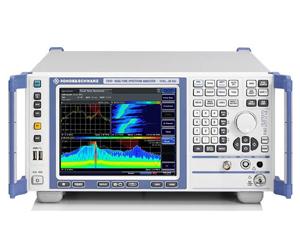

Rohde & Schwarz FSVR40 (Real-Time Spectrum Analyzers) Main Features and Specifications

Product Specs

  • Low end frequency limit 10Hz
  • High End Frequency Limit 40 GHz
  • Resolution Bandwidth Min. 1Hz
  • Resolution Bandwidth Max. 400 kHz
  • Amplitude Range Displayed noise floor to +30 dBm
  • Status -

See also

The R&S®FSVR combines a full-featured signal and spectrum analyzer with a real-time spectrum analyzer. Therefore, it provides all the capabilities and features that modern T&M instruments of this kind have to offer. In real-time operation, the R&S®FSVR seamlessly measures and displays the spectrum in the time domain with a span of up to 40 MHz. As a result, it captures every event for analysis, no matter how brief that event might be.

  • Frequency range from 10 Hz to 40 GHz
  • Operating modes
    • Real-time spectrum analyzer
    • Signal and spectrum analyzer
  • Expansion of the maximum input frequency to 110 GHz using external mixers
  • 40 MHz real-time analysis bandwidth
  • Outstanding level measurement accuracy up to 7 GHz
  • Excellent dynamic range and low phase noise
  • High measurement speed
  • Real-time spectrogram display
  • Real-time spectrum with persistence function
  • Triggering on frequency masks
  • Full-featured signal and spectrum analyzer with analysis software for GSM/EDGE, WCDMA/HSPA+, LTE, WiMAX™, WLAN, analog and digital modulation methods, noise figure and phase noise measurements
  • Power measurement functions and statistical evaluations for analysis of digitally modulated signals
  • Versatile marker and trace evaluation functions
  • Large I/Q memory depth
  • Touch-screen operation: using the finger as a mouse cursor
  • Fast access to all important functions
  • Built-in help function
  • Undo/redo function
  • Easy retrofitting of options
  • Easy scalability to handle application-specific requirements
  • Always up-to-date with firmware updates
  • Exchangeable hard disk for applications that involve the use of confidential data

R&S®FSVR40 real-time spectrum analyzer specifications:

  • Frequency range: 10 Hz to 40 GHz
  • Real-time RF bandwidth: 100 Hz to 40 MHz
  • A/D converter: 128 Msample/s, 16 bit
  • Windowing: Blackman Harris, Gauss, flat top, rectangular, Hanning, Kaiser
  • Measurement points per trace: 801
  • Resolution bandwidth: Real-time RF bandwidth/(100 to 400), depending on windowing
  • Number of spectra per second: 250 000/s
  • Spectrogram update rate: 10 000/s
  • Screen update rate: 30/s
  • Detectors: Average (linear or RMS), Max Peak, Min Peak, Sample
  • Trace functions: Max Hold, Min Hold, Average
  • FMT
    • Frequency resolution: Real-time bandwidth/801
    • Trigger span: Real-time RF bandwidth
    • Dynamic range: 0 dB to –80 dB below reference level

R&S®FSVR40 spectrum analyzer specifications:

  • Resolution bandwidths
    • Standard filter: 1 Hz to 10 MHz
    • Standard filter, ZERO SPAN: 1 Hz to 10 MHz, 20 MHz, 40 MHz
    • FFT sweep: 1 Hz to 300 kHz
    • Channel filter: 100 Hz to 5 MHz
  • Video filter: 1 Hz to 10 MHz, 20 MHz, 28 MHz, 40 MHz
  • I/Q demodulation bandwidth: 40 MHz
  • Displayed average noise level
    • 1 GHz: –152 dBm (1 Hz)
    • 30 GHz: –150 dBm
  • Displayed average noise level with preamplifier, R&S®FSV-B22 or R&S®FSV-B24 option
    • 1 GHz: –163 dBm
    • 30 GHz: –162 dBm
  • TOI, f < 3.6 GHz: 16 dBm
  • WCDMA ACLR
    • Without noise compensation: 70 dB
    • With noise compensation: 73 dB
  • Phase noise, 1 GHz carrier frequency
    • 10 kHz offset from carrier: –106 dBc (1 Hz)
    • 100 kHz offset from carrier: –115 dBc (1 Hz)
    • 1 MHz offset from carrier: –134 dBc (1 Hz)
