Showing Results for Keysight Technologies (Agilent HP) 8563EC

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8563EC listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $8950 to $3910 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 8563EC (8560 EC Series) Main Features and Specifications

Product Specs

  • Low end frequency limit 30Hz
  • High End Frequency Limit 26.5 GHz
  • Resolution Bandwidth Min. 1Hz
  • Resolution Bandwidth Max. 1 MHz
  • Amplitude Range DANL to +30 dBm
  • Status Discontinued
  • Supported until Aug-2014
  • Alternative N9030A-526 PXA Signal Analyzer, 3 Hz to 26.5 GHz, N9020A-526 MXA Signal Analyzer, 20 Hz to 26.5 GHz

See also

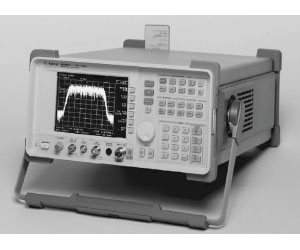

The Agilent 8563EC portable, color display microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 9 kHz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.

The 8563EC combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions.

  • Fast digital resolution bandwidths of 1 Hz to 3 MHz
  • Portable, MIL-PRF-28800, Class 3 rugged
  • Easily transfer screen image or trace data to PC with BenchLink software
