Showing Results for Advantest R3131

7 results found for Advantest r3131
Similar models:  Advantest R3131A
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Advantest R3131 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $3500 to $1798 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

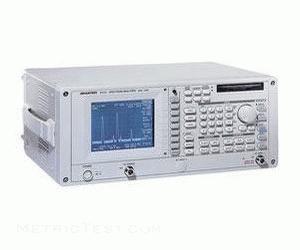

Advantest R3131 (Personal Spectrum Analyzers) Main Features and Specifications

Product Specs

  • Low end frequency limit 9 kHz
  • High End Frequency Limit 3 GHz
  • Resolution Bandwidth Min. 1 kHz
  • Resolution Bandwidth Max. 1 MHz
  • Amplitude Range +20 dBm to average noise level
  • Status Discontinued

See also

  • Minimum Span  50 kHz
  • Maximum Span  3 GHz
  • Minimum Sweep Time  50 ms
  • Maximum Sweep Time  500 s
  • Minimum Resolution Bandwidth  1 kHz
  • Maximum Resolution Bandwidth  1 MHz
  • Minimum Video Bandwidth  10 Hz
  • Maximum Video Bandwidth  1 MHz
  • Resalution Bandwidth Steps: 1-3
  • Video Bandwidth Steps: 1-10
  • Marker counter resolution: 1 Hz to 1 kHz
  • Frequency reference source accuracy : ±2 ppm/year ±5 ppm at operating temperature range
  • Amplitude measurement range: +20 dBm to Average noise level Maximum input level: +20 dBm, 50 VDC
  • Display Log: 10 dB/div 8 div, 1,2,5 dB/div 10 div; Lin: 10%/div of reference level
  • Input attenuator range: 0 to 50 dB 10 dB step

Get Price Quotes

ADVANTEST R3131 /74
  • $3,500
    • In Stock
