Advantest U3641N (U3641 Series) Main Features and Specifications

Product Specs

  • Low end frequency limit 9 kHz
  • High End Frequency Limit 3 GHz
  • Resolution Bandwidth Min. 1 kHz
  • Resolution Bandwidth Max. 3 MHz
  • Amplitude Range +130 dBuV to displayed average noise level
  • Status -

See also

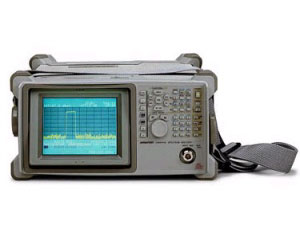

The U3641/3641N is a 3-GHz synthesized spectrum analyzer ideal for field use. With a lightweight, compact size and threeway power supply including battery operation, the U3641/3641N has been designed specifically for field installation and maintenance applications. In addition, with the inclusion of a synthesized local oscillator, the U3641/3641N allows highprecision and high-stability measurements with a minimum resolution bandwidth of 100 Hz.
A fast zero span sweep speed of 50 µs allows characterization of burst signal rising and falling edges and the measurement of power during on and off periods.
The U3641/3641N are portable analyzers which can be used for maintenance on various aspects of CATV and PHS/PDC.

  • Ultra-compact and light weight Main unit: 6.9 kg or less With battery: 9 kg or less
  • Frequency range: 9 kHz to 3GHz
  • Display dynamic range: 100 dB
  • Three-way power supply with battery operation. (100/200 VAC, external DC, and battery pack)
  • 1.5-hour operation is possible with the specialized battery
  • TFT 6-inch color LCD and memory card
  • High-stability measurement by means of synthesized operation
  • 50-µs high-speed sweep function
  • Diverse options and series including
  • TV image/audio demodulation, tracking generator, high-stability reference
    source, narrow RBW, channel input setting, controller, input impedance of 50 ohms (U3641) or 75 ohms (U3641N), CDMA Measurement
  • Variety of measurement functions
  • 20-dB gain preamplifier, 1-Hz resolution counter, occupied frequency bandwidth, adjacent-channel leakage power, and audio monitoring
