Keysight Technologies (Agilent HP) 86111U () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Supported until Nov-2009
  • Alternative N2100A-H10 7GHz Digital Communication Analyzer

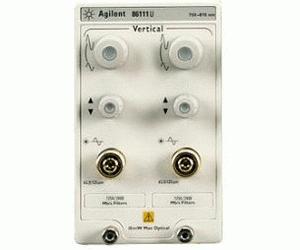

The 86111U is a short wavelength optical module that has up to 15 GHz of bandwidth optimized for testing signals from 155 Mb/s to 3125 Mb/s.

Simultaneous measurements on multiple channels improves throughput by eliminating the need to sequentially measure individual channels of a parallel optic component, but rather allowing multiple channels to be measured at the same time. For network equipment manufacturers, throughput is improved by allowing multiple devices, or multiple ports on a single device to be tested at the same time.

  • Two 15 GHz optical channels for 62.5/125 fibers
  • Wavelength range: 750-860 nm
  • Characteristic RMS noise: 14 µW (15 GHz BW)
  • Maximum average input power: 2 µW
  • Reference receiver capability (1.250/2.488 Gb/s or 2.488/3.125 Gb/s)
  • Unfiltered transition time: 32 ps
  • Minimum scale factor: 20 µW
  • Maximum scale factor: 500 µW
  • CW offset range (referenced two divisions from screen bottom): +1 mW to –3 mW
  • Input return loss: 20 dB
  • Compatibility: 86100A/B/C Infiniium DCA/DCA-J Mainframes
