Here you will find a large selection of new and used LeCroy (Teledyne LeCroy) LT224 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $3300 to $2598 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

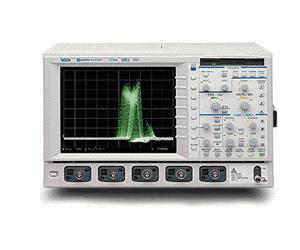

LeCroy (Teledyne LeCroy) LT224 (Waverunner) Main Features and Specifications

Product Specs

  • Bandwidth 200 MHz
  • Channels 4
  • Sample Rate 200 MSa/sec
  • Memory Depth 100 kpts/Ch
  • Status Discontinued
  • Alternative WaveRunner 44Xi, WaveSurfer 424
  • Bandwidth 200 MHz
  • Number of Channels 4 ch
  • Simultaneous Channels 4 ch
  • Simultaneous Maximum Sampling Rate/ch 200 MSa/s
  • One ch only max. sampling rate 200 MSa/s
  • Repetitive (RIS) Sampling Rate 10 GS/s max
  • Max. Record Length 100000 pt/sec
  • Min. Vertical Sensitivity 2 mV/div
  • Maximum Vertical Sensitivity 10 V/div
  • Number of Bits 8 bits
  • Input Impedance 50 Ohm
  • Input Impedance (alternate) 1 MOhm
  • Input Coupling AC,DC,GND
  • Maximum Input Voltage 5 Vrms
  • Maximum Input#2 (for Impedance #2) 400 Vrms
  • Main time base - lowest 1 ns/div
  • Main time base - highest 1000 s/div
  • Timebase accuracy 0.001 %
  • Trigger Source CH1,CH2,CH3,CH4
  • External Trigger Modes: Auto, Coupling, Level, Normal, Single, Slope, Stop
  • Display Type Color CRT
  • Display Size 21.336 cm
  • Display modes Auto,Normal,Single,Stop
