Lecroy LT224

60 Visitors viewed Test Equipment Experts ads in the last 30 Days

Send Request
Lecroy LT224

 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Lecroy LT224

Categories: Oscilloscopes, Digital Oscilloscopes

Manufacturer: LeCroy (Teledyne LeCroy)

Model: LT224

Condition: Used

Seller: Test Equipment Experts

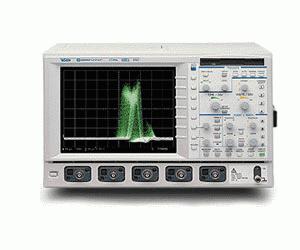

Lecroy LT224 200MHz 4CH 200MSa/s Oscilloscope

Product specifications of Lecroy LT224 (From Used-Line T&M Specifications)

  • Launch Date
  • Alternative WaveRunner 44Xi, WaveSurfer 424
  • Bandwidth 200 MHz
  • Channels 4
  • Sample Rate 200 MSa/sec
  • Memory Depth 100 kpts/Ch
  • Status Discontinued by Manufacturer

  • Bandwidth 200 MHz
  • Number of Channels 4 ch
  • Simultaneous Channels 4 ch
  • Simultaneous Maximum Sampling Rate/ch 200 MSa/s
  • One ch only max. sampling rate 200 MSa/s
  • Repetitive (RIS) Sampling Rate 10 GS/s max
  • Max. Record Length 100000 pt/sec
  • Min. Vertical Sensitivity 2 mV/div
  • Maximum Vertical Sensitivity 10 V/div
  • Number of Bits 8 bits
  • Input Impedance 50 Ohm
  • Input Impedance (alternate) 1 MOhm
  • Input Coupling AC,DC,GND
  • Maximum Input Voltage 5 Vrms
  • Maximum Input#2 (for Impedance #2) 400 Vrms
  • Main time base - lowest 1 ns/div
  • Main time base - highest 1000 s/div
  • Timebase accuracy 0.001 %
  • Trigger Source CH1,CH2,CH3,CH4
  • External Trigger Modes: Auto, Coupling, Level, Normal, Single, Slope, Stop
  • Display Type Color CRT
  • Display Size 21.336 cm
  • Display modes Auto,Normal,Single,Stop
