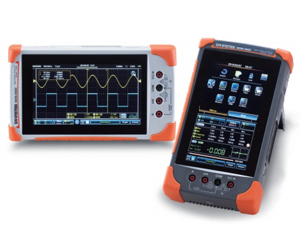

The GDS-200/300 series oscilloscopes, the brand new compact digital oscilloscopes developed by GW Instek, introduce 7” capacitive full touch panel LCDs, which can be positioned in portrait and landscape displays. The recharging-battery design makes the series easy to operate for field operations. The GDS-200/300 series are applicable in laboratories, R&D, large electric system tests, power product tests, motor tests, solar power battery inspection and repair, and for maintenance personnel who are always on field assignments.
The GDS-200/300 series, with two analog signal input channels, has advanced and standard models, which come with 70MHz, 100MHz and 200MHz bandwidths. The maximum sample rate per channel is 1GSa/s and memory depth is 5Mpts. The GDS-300 series oscilloscopes are equipped with 50,000 counts DMMs, and the GDS-200 with 5,000 counts DMMs, which can simultaneously measure and monitor A.C. and D.C. voltage and current, and temperature. Trend plot in a long period of time can also be drawn, allowing engineers to effectively monitor standard electric parameters while measuring basic circuit signals.
An optional 40 MHz dual-channel differential probe can achieve equivalent isolation results for a measurement system under a strict power and grounding environment. Users can also easily use the oscilloscope as a USB device for storing waveform images and raw data. Additionally, the oscilloscope can be connected to smartphones to transmit the recorded data. Advanced DMM features and GO/NOGO template editing facilitate advanced diversified measurement functionality. An engineering calculator, attenuation calculation analysis, and resistance indication analysis help users apply auxiliary functions that demonstrate powerful and comprehensive technological integration.
