Ophir RF 5053 (Linear Power RF Amplifiers) Main Features and Specifications

Product Specs

  • Rated Power Output 500W
  • Frequency Range - Low 150 kHz
  • Frequency Range - High 230 MHz
  • Output&nbsp;P1dB<br>Compression 300 watts
  • Gain 57dB
  • Status Discontinued

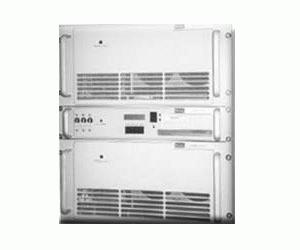

The Ophir RF 5053 is a 500 Watt broadband amplifier that covers the 0.15 – 230 MHz frequency range. This small and lightweight amplifier utilizes Class A/AB linear power devices that provide an excellent 3rd order intercept point, high gain, and a wide dynamic range.

  •  Frequency Range 0.15 – 230 MHz
  •  Saturated Output Power 500 Watts typical
  •  Power Output @ 1dB Comp. 300 Watts min
  •  Small Signal Gain +57 dB min
  •  Gain Flatness + 2.0 dB
  •  IP3 +61 dBm typical
  •  Input VSWR 2:1 max
  •  Harmonics -20 dBc typical @ 300 Watts
  •  Spurious Signals > -60 dBc typical @ 300 Watts
  •  Input/Output Impedance 50 Ohms nominal
  •  AC Input Power 3500 Watts max
  • AC Input 186 – 264 VAC, single phase
  •  RF Input 0 dB max
  •  RF Input Signal Format CW/AM/FM/PM/Pulse
  • Class of Operation AB
