Showing Results for Stanford Research Systems SR850

8 results found for Stanford research systems sr850
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Stanford Research Systems SR850 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $4195 to $3495 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

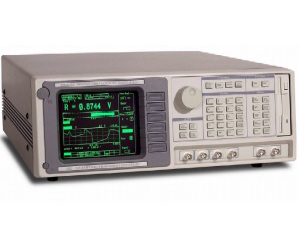

Stanford Research Systems SR850 (DSP Lock-in Amplifiers) Main Features and Specifications

Product Specs

  • Status -
The SR850 is a digital lock-in amplifier based on an innovative DSP (Digital Signal Processing) architecture. The SR850 boasts a number of significant performance advantages over traditional lock-in amplifiers—higher dynamic reserve, lower drift, lower distortion and dramatically higher phase resolution. In addition, the CRT display and 65,536 point memory make it possible to display and process data in a variety of formats unavailable with conventional lock-ins. At the input of the SR850 is a precision 18-bit A/D converter which digitizes the input signal at 256 kHz. The A/D converter, together with a high-speed DSP chip, replace the analog demodulator (mixer), low pass filters and DC amplifiers found in conventional lock-ins. Instead of using analog components, the SR850 is implemented by a series of precise mathematical calculations which eliminate the drift, offset, nonlinearity and aging inherent in analog components. The same DSP chip digitally synthesizes the reference oscillator providing a source with less than -80 dBc distortion, 100 mHz frequency resolution and 2 mV of amplitude resolution. Features: 1 mHz to 102.4 kHz frequency range >100 dB dynamic reserve 0.001 degree phase resolution Time constants from 10 µs to 30 ks (up to 24 dB/oct rolloff) Auto gain, phase, reserve and offset Data logging (up to 65k samples) Smoothing, curve fitting & statistics GPIB, RS-232 and 3.5" disk drive
