Showing Results for Keysight Technologies (Agilent HP) 11975A

6 results found for Agilent hp 11975a
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 11975A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1198 to $349 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

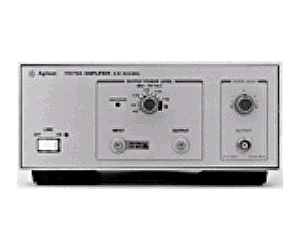

Keysight Technologies (Agilent HP) 11975A (General Purpose Microwave Amplifiers) Main Features and Specifications

Product Specs

  • Rated Power Output 40 mW
  • Frequency Range - Low 2 GHz
  • Frequency Range - High 8 GHz
  • Gain 15dB
  • Status Discontinued
  • Alternative 87415A (depending on the application)
The Agilent 11975 general purpose, leveled microwave amplifier has a frequency range of 2 to 8 GHz and adjustable output of +6 to +16 dBm. In addition, the amplifier has an adjustable bias current output port that supplies a maximum of ± 11 mA at +3 volts. This bias current is needed by some external harmonic mixers. The amplifier has automatic level control (ALC) that can be switched on and off. An "unleveled" light indicates that ALC is off. Use the 11975A as a LO driver for the Agilent 11970/71 series harmonic mixers to achieve maximum performance. Signal gain varies between 9 and 15 dB depending upon frequency
