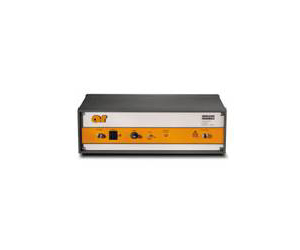

AR Worldwide 5S4G11 (S Series) Main Features and Specifications

Product Specs

  • Rated Power Output 5W
  • Frequency Range - Low 4 GHz
  • Frequency Range - High 10.6 GHz
  • Output&nbsp;P1dB<br>Compression 6 W
  • Gain 37dB
  • Gain Range 10 dB min
  • Status -
The Model 5S4G11 is a solid state, self-contained, air-cooled, broadband amplifier designed for applications where instantaneous bandwidth and high gain are required. Housed in a stylish contemporary cabinet, the unit is designed for benchtop use, but can be removed from the cabinet for immediate equipment rack mounting. The 5S4G11, when used with a sweep generator, will provide a minimum of 5 watts of RF power. Included is a front panel gain control which permits the operator to conveniently set the desired output level. The 5S4G11 is protected from RF input overdrive by an RF input leveling circuit which controls the RF input level to the RF amplifier first stage when the RF input level is increased above 0 dBm. The RF Amplifier stages are protected from over temperature by removing the DC voltage to them if an over temperature condition occurs due to cooling blockage or fan failure. The unit can be returned to operate when the condition has been cleared
