Kikusui KI-PMP

Send Request
Kikusui KI-PMP

 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Kikusui KI-PMP

Categories: Power Supplies, Kikusui Power Supplies

Manufacturer: Kikusui

Model: PMP Series

Condition: Used

Seller: Calright Instruments

Kikusui KI-PMP The small-size PMP Series is a DC power supply that supports simple...

The small-size PMP Series is a DC power supply that supports simple functions and provides constant multi-output voltage (CV) and current (CC). The past multi-output power supply can provide only two types of concurrently variable output. The PMP Series, however, implements "Multi-channel tracking" that allows all types of output to be varied concurrently. It also supports a "Delay Function" that allows timing for turning on or off each output to be varied, and a "Memory Function" that can store output settings. Moreover, the PMP Series is equipped with an external contact that enables control over turning on and off output, and over calling the memory. All outputs for the PMP18-3TR and the PMP25-2TR have positive polarity, which allows the product to be used as a power supply for developing digital equipment and other devices not requiring a negative power supply circuit. Furthermore, this product, which supports two common systems, is well adapted to an application for one power supply unit to offer digital and analog signals that have different common potentials.
Condition: Brand New
Ships within 3-4 weeks

Product specifications of Kikusui KI-PMP (From Used-Line T&M Specifications)

  • Launch Date
  • Number of Outputs Multiple
  • Max. Voltage 25V
  • Max. Current 5A
  • Ripple and Noise 0.5 mVrms
  • Computer Interface GPIB,RS-232,USB 2.0
  • Status --

The small-size PMP Series is a DC power supply that supports simple functions and provides constant multi-output voltage (CV) and current (CC).

PMP Series Lineup:

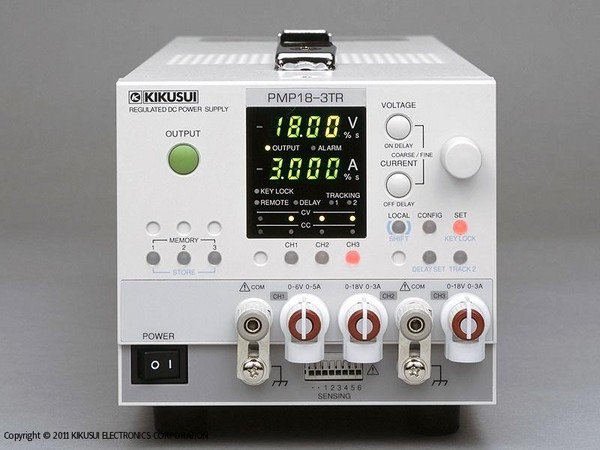

  • PMP18-3TR Multi Channel Tracking DC Power Supply, 3ch, Rating: +18V /3A, +18V /3A, +6V /5A
  • PMP25-2TR Multi Channel Tracking DC Power Supply, 3ch, Rating: +25V /2A, +25V /2A, +6V /5A
  • PMP16-1QU Multi Channel Tracking DC Power Supply, 4ch, Rating: +25V /3A, +6V /2A, +16V/1A,-16V/-1A

The PMP Series supports "Multi-channel Tracking" that allows all types of output to be varied concurrently. It also provides a "Delay Function" that can change output on/off timing, and a "Memory Function" that can store output settings.

  • Dual-tracking function capable of varying positive and negative voltages simultaneously
  • Uncluttered, easy-to-use operation panel
  • Preset memory function (three memories) for ease of use and convenience, even in manual operation
  • High-resolution voltage/current display (4-digit display)
  • TP-BUS (serial communications), maximum control distance: 200 m
  • External analog remote control
  • Five models with 2, 3, or 4 outputs
