Kikusui PMP Series (PMP Series Multi-Channel Tracking DC Power Supples) Main Features and Specifications

Product Specs

  • Number of Outputs Multiple
  • Max. Voltage 25V
  • Max. Current 5A
  • Ripple and Noise 0.5 mVrms
  • Computer Interface GPIB,RS-232,USB 2.0
  • Status -

The small-size PMP Series is a DC power supply that supports simple functions and provides constant multi-output voltage (CV) and current (CC).

PMP Series Lineup:

  • PMP18-3TR Multi Channel Tracking DC Power Supply, 3ch, Rating: +18V /3A, +18V /3A, +6V /5A
  • PMP25-2TR Multi Channel Tracking DC Power Supply, 3ch, Rating: +25V /2A, +25V /2A, +6V /5A

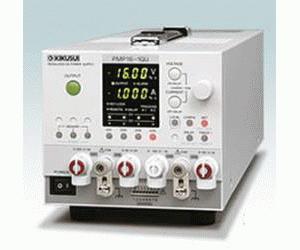

  • PMP16-1QU Multi Channel Tracking DC Power Supply, 4ch, Rating: +25V /3A, +6V /2A, +16V/1A,-16V/-1A

The PMP Series supports "Multi-channel Tracking" that allows all types of output to be varied concurrently. It also provides a "Delay Function" that can change output on/off timing, and a "Memory Function" that can store output settings.

  • Dual-tracking function capable of varying positive and negative voltages simultaneously
  • Uncluttered, easy-to-use operation panel
  • Preset memory function (three memories) for ease of use and convenience, even in manual operation
  • High-resolution voltage/current display (4-digit display)
  • TP-BUS (serial communications), maximum control distance: 200 m
  • External analog remote control
  • Five models with 2, 3, or 4 outputs
