Here you will find a large selection of new and used Associated Research 7650 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1995 to $249 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Associated Research 7650 (HypotULTRA® III) Main Features and Specifications

Product Specs

  • Max. Output AC Voltage 5 kV
  • Output AC Current 30 mA
  • Max. Output DC Voltage 5V
  • Output DC Current 10 mA
  • Additional Measurements IR
  • Status -

See also

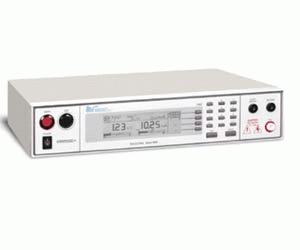

HypotULTRA® III, model 7650, is a 3-in-1 dielectric analyzer with an enhanced graphic LCD and analog bar graph.

HypotULTRA® III provides AC/DC Hipot and Insulation Resistance testing. In addition, through the 2K Ohm test mode, it is able to perform point-to-point continuity and hipot tests at voltages up to 5,000 volts with one set of test connections.

It can be used as a bench top instrument or as a PC controlled system used in tandem with our stand alone Autoware® control software. It is well suited for automated hipot testing needs. Extended test capability is provided with the optional 4 or 8 port built-in scanning matrix and the 2K Ohm continuity test mode.

 The ability to perform multiple tests with a single connection will increase production and efficiency while saving time and money. The enhanced graphic greatly simplifies the user interface and makes testing safer, easier and more reliable than ever before.
