Here you will find a large selection of new and used QuadTech 2530 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

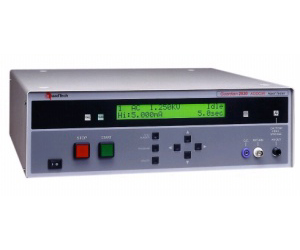

QuadTech 2530 (2500 Series) Main Features and Specifications

Product Specs

  • Max. Output AC Voltage 5 kV
  • Output AC Current 15 mA
  • Max. Output DC Voltage 6 kV
  • Output DC Current 7.5 mA
  • Additional Measurements Insulation resistance
  • Status Discontinued

See also

  • Measurement of Real, Imaginary and Total Current
  • Ground Fault Interruption (GFI) for operator safety
  • Programmable Ramp, Test and Fall Times
  • Storage of Tests Setups, 25 User (5 predefined), and 9 Multi-step with 3 steps per measurement
  • Continuous Leakage Current Monitoring down to 0.1µA
  • Ground Continuity Test with Adjustable Limits
  • Password Protected Front Panel Lockout
  • Remote I/O, RS-232 Interface standard, IEEE-488, and Enhanced Remote Optional
  • Review of Data after Measurement
  • Insulation Resistance Measurements from 10kOhm to 2TOhm
